YY355 High-Efficiency All-Purpose Hydraulic Oil Press

The YY355 high-efficiency all-purpose hydraulic oil press offers the ultimate solution for your oil extraction needs! Our well-designed hydraulic oil press is characterized by its high efficiency and convenience, allowing you to effortlessly extract pure edible oil from various oilseeds. Whether it's seeds, nuts, fruits, or grains, our versatile hydraulic oil press can meet all your oil pressing requirements, ensuring maximum oil extraction yield and purity.

Keywords：

all-purpose

oil

machine

production

can

pressing

and

peanut

the

hydraulic

hydraulic oil press

hydraulic oil pressing machine

Category：

Oil Press Equipment

TEL：

+86-19906365856

EMAIL：

gavin@oil-pressing-machine.com

RELATED PRODUCTS

CONSULT

Detail

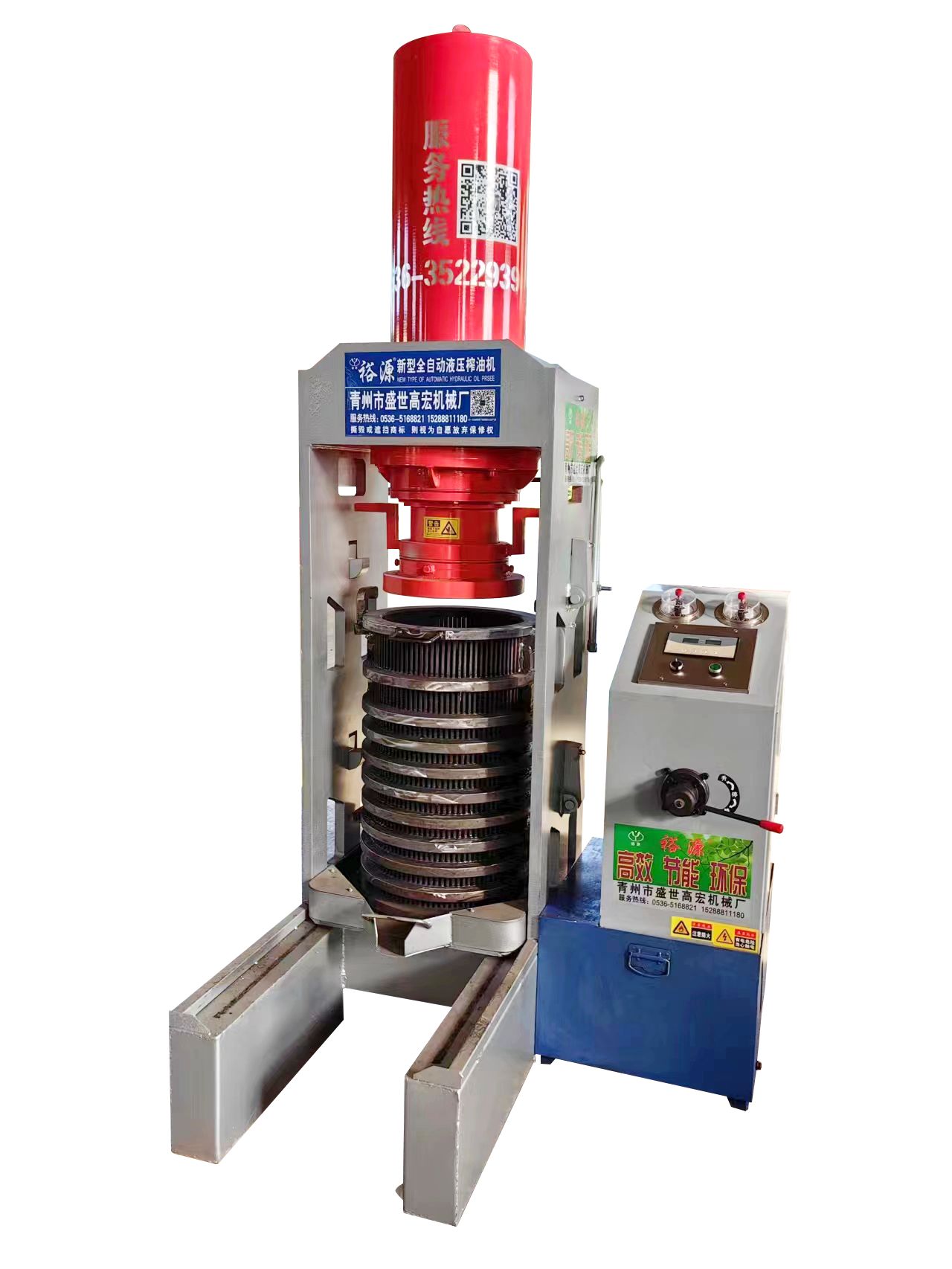

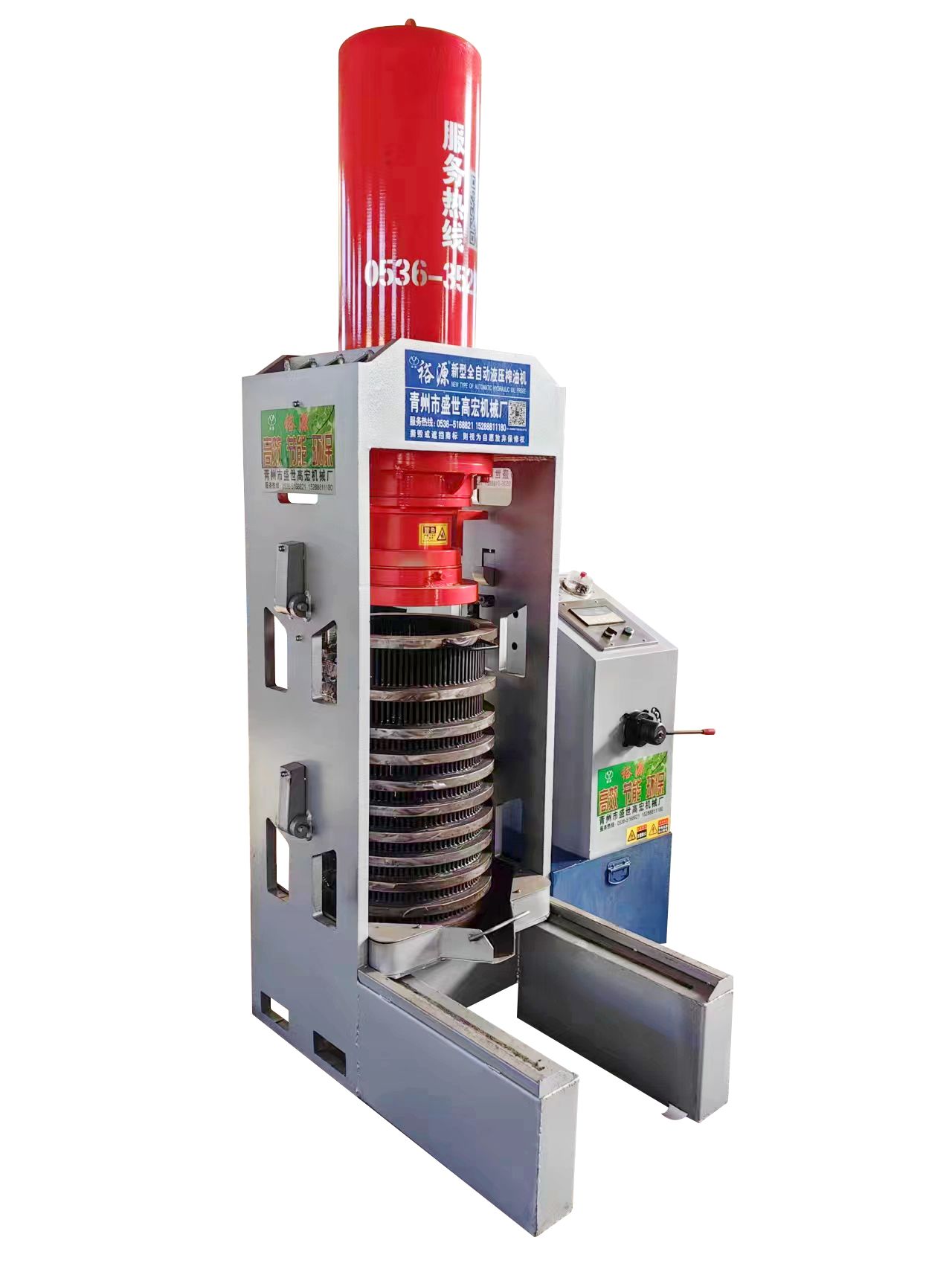

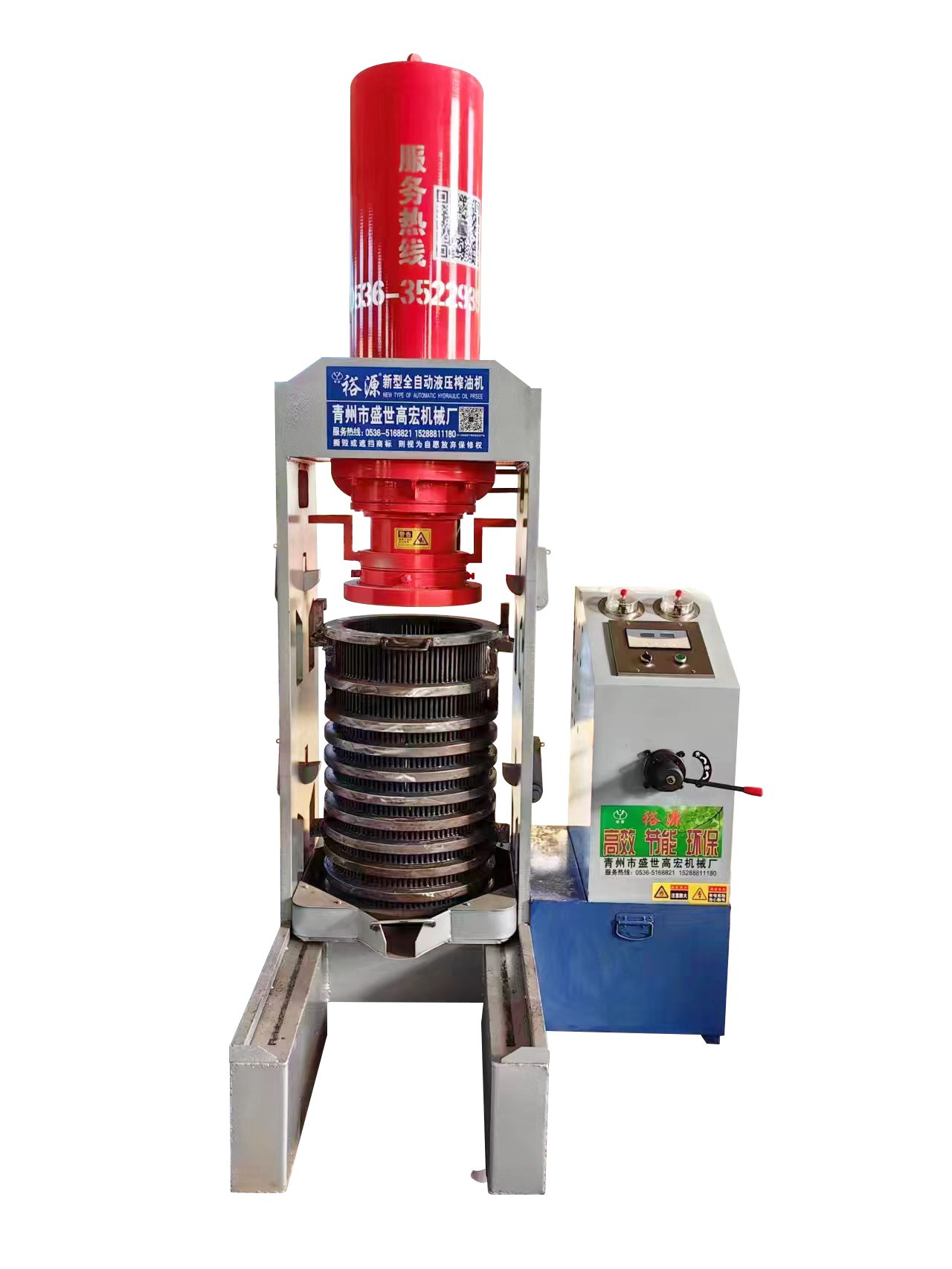

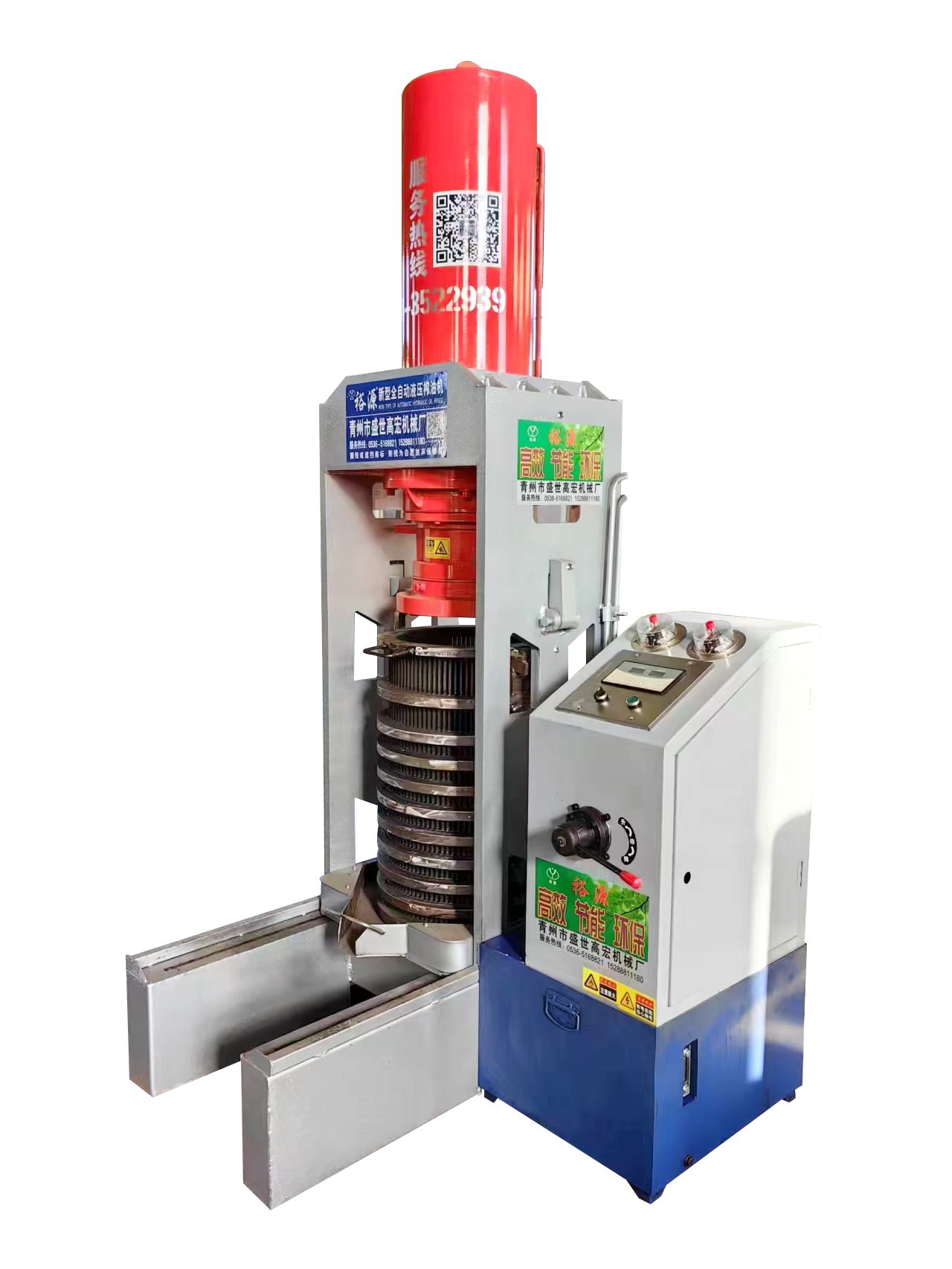

YY355 High-Efficiency All-Purpose Hydraulic Oil Press

（Suggestion:Hot pressing ）

PLEASE READ THIS DETAILED PAGE ON YOUR PC TO ASSURE YOU CAN GET GOOD UNDERSTANDING

I. KeyFeatures:

Energy-Saving and Efficient	motor:3 KW and automatic pressing
Labor-Saving	One person can operate 3-4 units simultaneously
High pressure	General 300T-600T, 1200-1800T can be customed
Only cover a small area	2.2m²

2.Specifiction（Please check on your PC)

MODEL（Hydraulic cylinder diameter）	SHHC300	SHHC325	SHHC355	SHHC400	SHHC426	SHHC480	Remark
Motor power（kw）	3	3	3	3	3	3
System pressure (MPa)	60	60	60	60	60	60
Press force (Ton)	300	325	370	410	500	600
Piston Diameter(mm)	250	260	280	300	320	360
piston rod Diameter(mm)	200	200	240	240	240	270
Cylinder stroke(mm)	700	700	700	700	700	700	Customizable 850
Barrel inner diameter(mm)	390	390	390	390	390	390	Customizable
Barrel height	800	800	800	800	800	800	Customizable
Oil press weight (kg)	40-100	40-100	40-100	40-100	40-100	40-100
Machine weight (T)	1.5	1.5	2.2	2.4	2.5	2.7
Dimensions(mm)	1200x1200x2250	1200x1200x2250	1200x1200x2350	1200x1200x2350	1200x1200x2350	1200x1200x2350

3. Supporting machine overview （Please check on your PC）

Oil Pre-processing Machine

After Pressing Machine

Pre-press machine:

Can handle soybean tablet, crush rapeseed（black seed）, peanut, sesame, flax, etc., a multi-purpose machine.

304 stainless steel Centrifugal Oil Filter

304 stainless steel roller frying pan:

It can work automatically according to the set temperature

Pressure Type Multi-Layer Oil Filtration Machine

Peanut Milling Machine：

3 minutes can process 50kg

Oil cake crushing machine

Frying pan：

Need to add thermal oil, electric drive

Oil Refining Equipment

Tea Seed Crushing Machine:

For hard shell oilseeds

Frozen dewaxing equipment:

Contains Plate and frame oil filter

Hydraulic Cake Packaging Machine：

Generally used for horizontal oil press machine, vertical hydraulic oil press is basically not used

Filling + capping + labeling machine

Unpressurized steam boiler：
Steam pre-cooking can destroy the cell structure of oil and help to release oil, increasing the yield of oil

Negative Pressure Cooking Oil Pot(Specifically for Animal Oil)

4. Reference Production Line Process for Related Products

- Peanut Oil Production Process and Production Line

STEP1: Peanut sheller	STEP2: crushing：Peanut milling machine	STEP3: Peanut roasted with frying pan

STEP3: Peanut roasted with roller frying pan Please note: If crushed, roller is not suggested	STEP4: Peanut pressing by hydraulic oil pressing machine	STEP5: oil cake crushing machine

STEP6: Can euqip refining machine	STEP7: Can euqip filling machine	Can design automatic oilpressing machine

- Blackseed/Rapeseed Oil Production Process and Production Line

STEP1 Frying by roller frying pan	STEP2 Crushing by pre-pressing machine	STEP3 Steaming the blackseeds

STEP4 pressing by hydraulic oil pressing machine	Cold pressing overviewing	Can design automatic oilpressing machine
