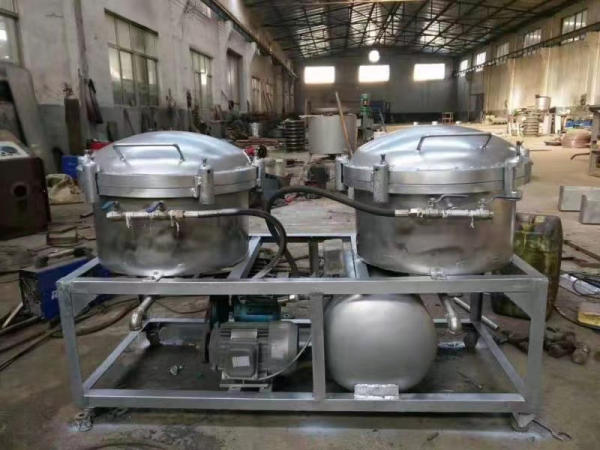

YY-60 Model (Stainless Steel) Pneumatic Oil Filter
Suitable for cold and hot pressing processes of various oils, including rapeseed oil, peanut oil, soybean oil, camellia seed oil, peony seed oil, and sesame seed oil.
Keywords：
Category：
TEL：
Detail
Applicable Oil Materials:
Suitable for cold and hot pressing processes of various oils, including rapeseed oil, peanut oil, soybean oil, camellia seed oil, peony seed oil, and sesame seed oil.
Working Principle:
The pneumatic oil filter utilizes positive air pressure to filter the oil. The crude oil passes through multiple layers of high-density filter cloth for fine filtration, effectively removing solid suspended particles and oil sludge with a particle size of 5 to 20 microns. This process achieves the separation of a large amount of crude oil and oil residues.
Filtration Effect:
The filtered oil exhibits a non-foaming, low-smoke, and no-precipitate properties.
Product Specifications:
- Product Model: 60 Pneumatic Oil Filter
- Working Pressure: 0.1-0.5 Mpa
- Processing Capacity: 50-150 kg/hour
- Filter Barrel Diameter: 580*2 mm
- Total Weight: 200 KG
- Power Supply: 380V/220V
- Motor Power: 2.2 kW
- Number of Barrels: Double barrels
